LVM60 Greenhouse Curtain Motor With Guide Wheels
Price range: $375.00 through $410.00
Single output, low voltage, DC motor

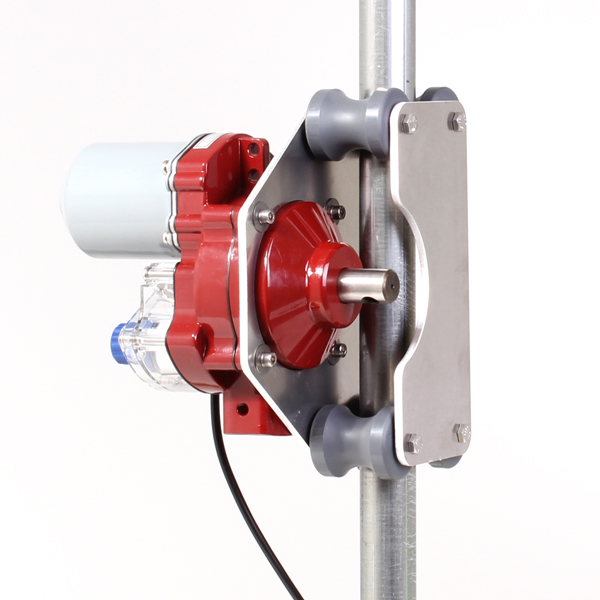

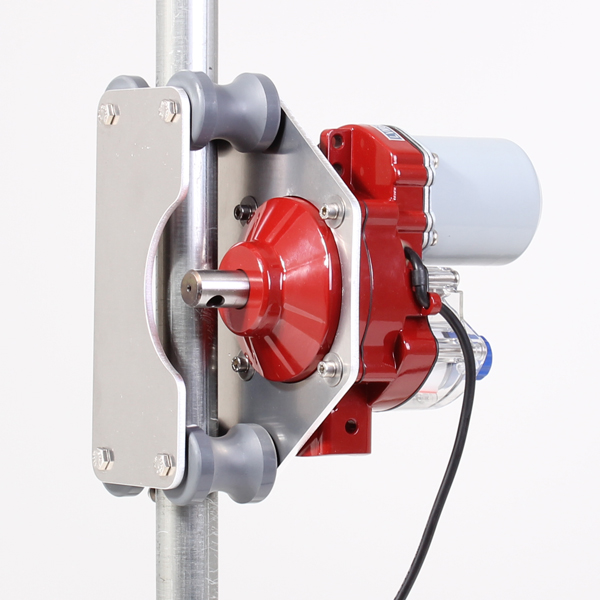

Interchangeable guide wheel set to switch between Left and Right Output
Add an adapter for your roll bar by clicking through the options below!
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Roll Bar Type/Size (for Adapter) | 1.3″ OD Pipe, Side Clasp, 1.6″ OD Pipe, No Adapter Needed |
**The LVM60 Greenhouse Curtain Motor is designed to lift up to a 1250 sq. ft. single bar curtain or up to a 625 sq. ft. double bar curtain (square footage measured Length X Width)**
The LVM60 Greenhouse Curtain Motor comes complete with the guide wheel set and has been specially designed to meet the demands of greenhouses. These compact and lightweight motors are able to take your ventilation to a more efficient operation.
You can automate your curtain ventilation by using one of our environmental controllers or use interface boxes to connect to your existing ventilation system.
Motor Specifications: 24 VDC, 60 NM, 3A, 72 W, 2.7 RPM, 40 Rev, 0.78″ (20mm) OD output shaft
Features
- Easy access limit switches (directional limits)
- Interchangeable guide wheel assembly to change Left or Right output of motor
- Compact, quiet, and light weight
- Our innovative low-bind guide wheels for longer motor life
- Innovative roll bar adapter system for multiple roll bar adapters
- Our own U.S. based tech support & repair options at 1-877-546-2257
- 4 Year Limited Warranty for a lower total cost of ownership
- When used with one of our controllers or separate approved controller
Installation Instructions
