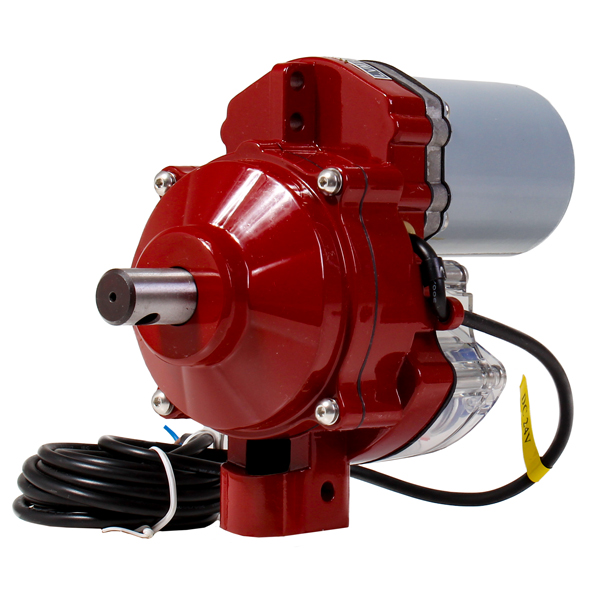

LVM100 – Motor Only

**This motor is designed to lift up to a 1750 sq. ft. single bar curtain or up to a 875 sq. ft. double bar curtain (square footage measured Length x Width)**

LVM100 motor only, single output

Automate using one of our environmental controllers or integrate into your existing system with one of our interface boxes.

Motor Specifications:  24 VDC, 100 NM, 4.2 A, 100 W, 3 RPM, 40 Rev, 0.78″ (20mm) OD output shaft

Features

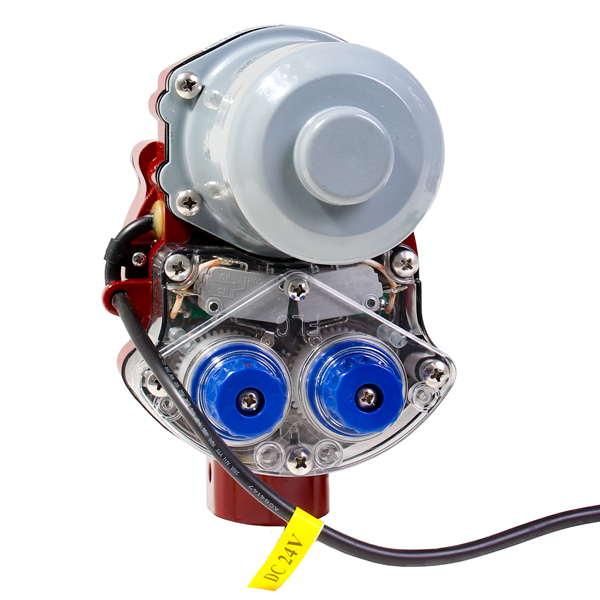

• Easy access limit switches (directional limits)
• Our innovative low-bind guide wheels for longer motor life
• Innovative roll bar adapter system for multiple roll bar adapters
• Our own U.S. based tech support & repair options at 1-877-546-2257
• 4 Year Limited Warranty for a lower total cost of ownership
  • When used with one of our controllers or separate approved controller
