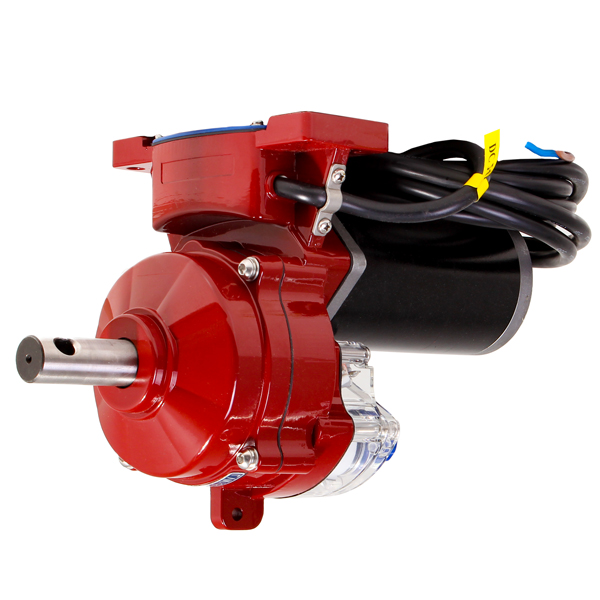

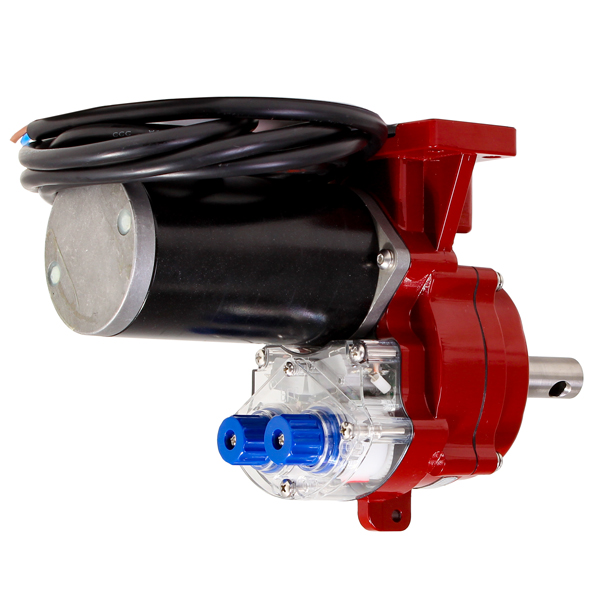

LVM180 – Motor Only

**This motor is designed to lift up to a 3000 sq. ft. single bar curtain or up to a 1500 sq. ft. double bar curtain (square footage measured Length X Width)**

LVM180 motor only, single output

Automate using one of our environmental controllers or integrate into your existing system with one of our interface boxes.

Features

• 4 Year Warranty for a lower total cost of ownership
• Our innovative low-bind guide wheels for longer motor life
• Our own U.S. based tech support & repair options at 1-877-546-2257
• Innovative roll bar adapter system for multiple roll bar adapters

Motor Specifications:  24 VDC, 180 NM, 8A, 200 W, 4.5 RPM, 40 Rev, 0.875″ (22mm) OD output shaft

• Easy access limit switches (directional limits)
• 4 year limited warranty
  • When used with one of our controllers or separate approved controller

Weight: 16.5lbs Height: 6in Width: 9in Length: 12in
